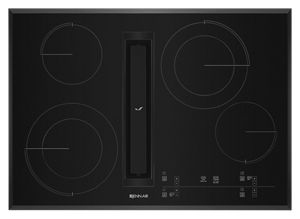

Black Floating Glass 30" JX3™ Electric Downdraft Cooktop with Glass-Touch Electronic Controls

Black Floating Glass 30" JX3™ Electric Downdraft Cooktop with Glass-Touch Electronic Controls

Signature Features

JX3™ Downdraft Ventilation System with 3 Speeds

Developed and refined by JennAir®, this downdraft ventilation system uses proximity ventilation that helps capture smoke, steam and odors at the cooking surface, whisking them down and out for a fresh, clean kitchen. It has been designed to provide optimal cooking performance, relying on a vertically mounted, 297 CFM Motor Class blower system.

Glass-Touch Electronic Controls

Intuitive controls are highly responsive to a light touch increasing usability while making it easy to clean the cooking surface.

Perimetric Extraction

Provides exceptional ventiliation performance built into an attractive design by capturing cooking vapors through a thin slot and speeding the air, all while maintaining quiet operation.

DuraFinish® Glass Protection

DuraFinish® Glass Protection helps keep your ceramic glass cooktop's surface looking like new by resisting scratching.

10"/6" Dual-Choice™ Element

An electric element that features two element sizes at one position and has a maximum heat output of up to 3,000 watts for greater cooking flexibility.

Convertible to Duct-Free Ventilation

Keep the view from your kitchen open and free from ductwork with this optional kit that allows conversion to duct-free ventilation.

Technical Specifications

Cooktop Details

Cooktop Surface Color: Black
Cooktop Surface Material: Ceramic Glass
Griddle Included: N/A
Heating Element On Indicator Light: Yes
Hot Surface Indicator Light: Yes
Cooktop Selections:
  • Convertible to Duct Free Ventilation
  • DownDraft
Installs Over Built-In Oven: No

Details

Design Expression: Black Glass
Digital Display: Yes
Fuel Type: Electric Radiant
LP Convertible: No
Power Outage Compatible: No

Certifications

ADA Compliant: Yes
Prop 65: Standard
UL: Yes

Element/Burner Details

Cooktop Element Style: Radiant

Element/Burner Details

Cooktop Type: Downdraft
Left Front Element-Burner Power: 3000W/1400W
Left Front Element-Burner Type: Dual
Left Front Element-Burner Size: 10in./6in.
Left Rear Element-Burner Size: 6in.
Left Rear Element-Burner Power: 1,300W
Left Rear Element-Burner Type: Hyper
Number of Cooking Element-Burners: 4
Power Boost: No
Right Front Element-Burner Power: 1200W
Right Front Element-Burner Size: 6in.
Right Front Element-Burner Type: Single
Right Rear Element-Burner Power: 3000W/1400W
Right Rear Element-Burner Size: 9in./6in.
Right Rear Element-Burner Type: Dual-Stacked Burner
Automatic Pan Detection: No

Ventilation Details

CFM Motor Class: 310
Downdraft Vent: Yes
JED4430GB
Black Floating Glass 30" JX3™ Electric Downdraft Cooktop with Glass-Touch Electronic Controls

Dimensions

Depth: 22-1/16 in
Gross Weight: 78 lbs
Height: 3-6563/10000 in
Net Weight: 66 lbs
Width: 30-7/8 in

Controls

Control Type: Electronic Touch
Control Location: Right Front
Number of Vent Speeds: 3

Electrical

Power Cord Included: No
