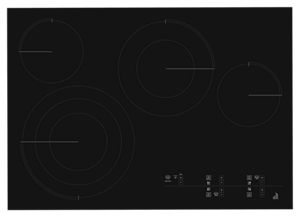

Oblivian Glass 30" Electric Radiant Cooktop with Glass-Touch Electronic Controls

Oblivian Glass 30" Electric Radiant Cooktop with Glass-Touch Electronic Controls

Signature Features

Power Exalted

10,300 watts surge through four unyielding elements to deliver the most powerful radiant cooktop in its class.

True Flush Installation

Pique curiosity. A true flush installation makes the black surface melt into its surroundings, luring you in and creating a seamless sightline throughout your kitchen.

Radiant Elements

Beneath the sleek, black cooktop surface, fast-heating elements deliver heat upon command.

Oblivion Glass Surface

Plunge into the tranquility of smooth, shadow-black glass that lures you in—and wipes down easily.

Remote Access

Check cooking status. Personalize settings. Connect to WiFi for real-time notifications and monitor your appliance from anywhere. Tap and swipe on both iOS and Android devices.

Individual Power Controls

Impose your will. The most usable radiant cooktop from JennAir® offers up total and utter control.

Emotive Controls

Striking, intuitive and inviting controls with clear, white LEDs unleash performance at your touch.

Install Over Single Wall Oven

Versatility and functionality converge with the ability to install in a countertop above our single wall oven.

Precise Power™ Function

Maximum power. Meticulously accurate. The Precise Power™ function immediately takes power to its peak and then automatically reduces it to the level of your choosing, so you can heat oil for stir-fry or bring water to a boil quickly. It can be used simultaneously on more than one element.

Technical Specifications

Details


Cooktop Configuration: All Burners
Design Expression: Oblivian Glass
Digital Display: No
Fuel Type: Electric Radiant
LP Convertible: No
Power Outage Compatible: No

Cooktop Details


Cooktop Surface Color: Black
Cooktop Surface Material: Glass
Griddle Included: N/A
Heating Element On Indicator Light: Yes
Hot Surface Indicator Light: Yes
Combination Match with Oven:
  • JJW2427
  • JJW2430
  • JJW3430
Installs Over Built-In Oven: Yes

Certifications


ADA Compliant: ADA Height and Operation Compliant
Prop 65: Standard
UL: Yes

Element/Burner Details


Center Rear Element-Burner Power: 3200/2300W
Center Rear Element-Burner Size: 10in./6in.
Center Rear Element-Burner Type: Dual
Cooktop Element Style: Radiant
Cooktop Type: Traditional
Left Front Element-Burner Power: 4500/3000/1500W
Left Front Element-Burner Type: Triple
Left Front Element-Burner Size: 12in./9in./6in.
Left Rear Element-Burner Size: 6in.
Left Rear Element-Burner Power: 1,300W
Left Rear Element-Burner Type: Standard
Number of Cooking Element-Burners: 4
Power Boost: No
Right Rear Element-Burner Power: 1,300W
Right Rear Element-Burner Size: 6in.
Right Rear Element-Burner Type: Standard
Automatic Pan Detection: No

Ventilation Details


Downdraft Vent: No
JEC4430HB
Oblivian Glass 30" Electric Radiant Cooktop with Glass-Touch Electronic Controls

Dimensions


Depth: 21-3/4 in
Gross Weight: 46 lbs
Height: 5-1/4 in
Net Weight: 41 lbs
Width: 30-13/16 in
Common Size: 30 in
Maximum Height: 5-1/4 in

Electrical


208V Compatible: Yes
Power Cord Included: No
Amps: 40
Hz: 60
Volts: 240

Controls


Control Type: Electronic Touch
Control Location: Right
