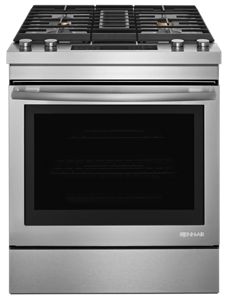

Euro-Style 30" Dual-Fuel Downdraft Range

Euro-Style 30" Dual-Fuel Downdraft Range

Signature Features

Downdraft Ventilation

Developed and refined by Jenn-Air®, downdraft ventilation uses proximity ventilation to capture smoke, steam and odors at the cooking surface. whisking them down and out for a fresher, cleaner kitchen.

DuraFinish™ Protection

With excellence in every detail, DuraFinish™ Protection keeps your cooktop’s surface looking like new, resisting yellowing, staining and scratching.

Telescoping Glide Rack

This roll-out rack lets you easily position and remove dishes.

Duct-Free Filter Kit

Filter included with the duct-free kit that captures smoke, grease and moisture, and allows air to travel through the filter without a loss of air efficiency. The filter also has a replacement indicator.

17,000-BTU Burner

This 17,000 BTU burner can handle high-powered cooking while still being gentle enough for delicate simmering.

Brass Burners

Brass burners add durability and elegance to the cooking surface.

True Convection

uses a hidden heating element and fan to circulate hot air throughout the entire oven while baking or roasting. This provides consistent temperatures for delicious cookies and pastries; juicy, well-browned roasts; and flavorful caramelized vegetables.

Technical Specifications

Exterior Details

Door Type: Metal & Glass
Handle Color: Stainless Steel
Handle Type: Towel Bar
Handle Material: Metal
Knob Type: Metal
Knob Color: Stainless Steel
Oven Control Location: Front
Oven Control Type: Electronic Touch
Oven Window Size: Extra Large

Details

Design Expression: Euro-Style
Fuel Type: Dual Fuel
Oven Configuration: Single Oven
Power On Indicator Light: Yes
Power Outage Compatible: No
Range Configuration: Slide-In
Range Type: Slide-in
Oven Selections: DownDraft

Cooktop Details

Cooktop Control Type: Knobs
Cooktop Control Location: Front
Cooktop Surface Color: Stainless
Cooktop Surface Material: Stainless Steel
Heating Element On Indicator Light: No
Hot Surface Indicator Light: No

Oven Cavity Details

Bake Element Power: 3,600 W
Broiler Element Power: 4,000 W
Broiler Location: Top of Oven
Convection Element Type: Fan
Convection Element Power: 3,200 w

Oven Cavity Details

Convection Functions:
  • Bake
  • Broil
  • Roast
Hidden Bake Element: Yes
Interior Color: Grey
Number of Oven Lights: 2
Number of Oven Racks: 3
Number of Rack Guides: 7
Oven Cleaning Type: AquaLift® Self Clean
Oven Cooking System: Convection
Oven Light Type: Incandescent
Oven Rack Type: Max Capacity, Gliding Roll-Out, and Heavy Duty
Automatic Convection Conversion Temperature Adjust: Yes
Oven Light Switch Location: Oven Control

Element/Burner Details

Cooktop Element Style: Gas Burner
Left Front Element-Burner Power: 17,000 BTU
Left Front Element-Burner Type: Burner
Left Rear Element-Burner Power: 5,600 BTU
Left Rear Element-Burner Type: Burner
Number of Cooking Element-Burners: 4
Right Front Element-Burner Power: 15,000 BTU
Right Front Element-Burner Type: Burner
Right Rear Element-Burner Power: 9,200 BTU
Right Rear Element-Burner Type: Burner
Number of Grates: 3

Certifications

ADA Compliant: ADA Height and Operation Compliant
Prop 65: Standard
UL: Yes

Grate Details

Grate Details:
  • Cast Iron Grates
  • Continuous
  • Dishwasher Safe
  • Matte Finish
JDS1750FS
Euro-Style 30" Dual-Fuel Downdraft Range

Dimensions

Depth: 28-5/16 in
Depth Closed Including Handles: 28-7/8 in
Gross Weight: 258 lbs
Height: 36 in
Net Weight: 220 lbs
Width: 29-7/8 in
Common Size: 30 in
Capacity: 6.4 cu. ft.

Controls

Display Color:
  • Red
  • White
Electronic Display Type: Digital

Electrical

Power Cord Included: No
Amps: 40
Volts: 240
